Compact 304 Stainless Steel Swing Barrier Gate with 0.2s Open/Close Time and RS485 Communication

  • Compact 304 Stainless Steel Swing Barrier Gate with 0.2s Open/Close Time and RS485 Communication
  • Compact 304 Stainless Steel Swing Barrier Gate with 0.2s Open/Close Time and RS485 Communication
  • Compact 304 Stainless Steel Swing Barrier Gate with 0.2s Open/Close Time and RS485 Communication
  • Compact 304 Stainless Steel Swing Barrier Gate with 0.2s Open/Close Time and RS485 Communication
  • Compact 304 Stainless Steel Swing Barrier Gate with 0.2s Open/Close Time and RS485 Communication
Τόπος καταγωγής Γκουανγκντόνγκ, Κίνα
Μάρκα Goldantell/OEM
Πιστοποίηση CE/ROHS/FCC/IS9001
Αριθμό μοντέλου Σειρά gat-custom
Ποσότητα παραγγελίας min 1
Τιμή $728-1,633
Συσκευασία λεπτομέρειες Συσκευασμένος στο χαρτοκιβώτιο αρχικά, και έπειτα ενισχυμένος με την εξαγωγή την ξύλινη περίπτωση γι
Χρόνος παράδοσης 7-10 εργάσιμες ημέρες μετά τη λήψη της πληρωμής σας
Όροι πληρωμής L/C,T/T,Western Union
Δυνατότητα προσφοράς 7-9 οι εργάσιμες ημέρες μετά από έλαβαν την πληρωμή σας

Επικοινωνήστε μαζί μου για δωρεάν δείγματα και κουπόνια.

ΤιAPP:0086 18588475571

Βυθός: 0086 18588475571

Σκυϊδάκι: sales10@aixton.com

Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε 24ωρη online βοήθεια.

x
Λεπτομέρειες
Έλεγχος πρόσβασης Κωδικός QR, Κάρτα IC Ανοιχτό/κλείσιμο χρόνου 0,2 s
Διεπαφή επικοινωνίας RS-232, RS485, TCP/IP Κατεύθυνση λειτουργίας 2-δρόμος
Τύπος κινητήρα Κινητήρας χωρίς ψήκτρες Διάσταση 1400x180x1000 mm
Τύπος οθόνης Οθόνη LCD πλάτος λωρίδας 55-130 cm
Τροφοδοτικό Ηλεκτρονικό ρεύμα 110~240V 50/60Hz Βραχίονα Ακρυλικό 10mm
Πλάτος 900 mm Αισθητήρες υπέρυθρων 6-10 ζευγάρια
Ρυθμός ροής 40 άτομα/λεπτό (ανοιχτό), 35 άτομα/λεπτό (κλειστό) MCBF 5.000.000 κύκλοι
Υγρασία εργασίας 30%~95%
Επισημαίνω

0.2s Open/Close Time Swing Barrier Gate

,

304 Stainless Steel Speed Gate

,

RS485 Communication Security Turnstile Gate
Μπορείτε να σημειώσετε τα προϊόντα που χρειάζεστε και να επικοινωνήσετε μαζί μας στον πίνακα μηνυμάτων.
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων
Smallest Quick Pass Gate CE Certification DC Brushless Motor Swing Barrier Gate Speed Gate
Brief Description Of Barrier Gate
  • Application: outdoor or indoor
  • LED indicator light: green and red indicate the passing information
  • Glass panel slides open horizontally to provide an unobstructed passageway
  • Safety: Gate auto opens when power is off to meet fire protection requirements
  • Custom: Visible high glass panel prevents climbing over the gate for unauthorized access
  • Standard external electrical interface compatible with various reading/writing devices for easy system integration
Specification Of Barrier Gate
1 Cabinet dimension 1400 (L) x 180 (W) x 1000 (H) mm
2 Cabinet material 304 stainless steel (316 ss can be custom-made)
3 Switching power supply AC220±10%V 50Hz or AC110±10%V 60Hz
4 Opening/closing time 0.2s
5 Arm material Thickness 10mm Acrylic, or tempered glass or steel (custom)
6 Access mode Single in/out or Bidirectional
7 Passthrough Width 900mm (or custom)
8 Mechanism DC Brushed motor+Clutch (or Servo motor)
9 Communication interface RS485, TCP/IP
10 Infrared sensor 6~10 pairs
11 Optimal flow rate 40 persons/min (open), 35 persons/min (closed)
12 Reset time after break down Default 10s can be changed to fit different demands
13 MCBF 5,000,000 Cycles
14 Working humidity 30%~95%
Security Features Of Barrier Gate
  • Multi alarm modes: illegal intrusion, anti-intrusion, anti-follow, overtime alarm etc.
  • Bi-directional or single way optional
  • Gate auto-open when power is off to meet fire protection requirements
  • Anti-Tail gaiting feature built in to prevent unauthorized access
  • The wings open automatically during power interruption, and recover N/C mode after power on (optional)
  • Fast opening and closing time
  • Built-in mechanical lock to prevent forced opening of swing flaps
  • Pairs of IR sensors
Classification Of Barrier Gate

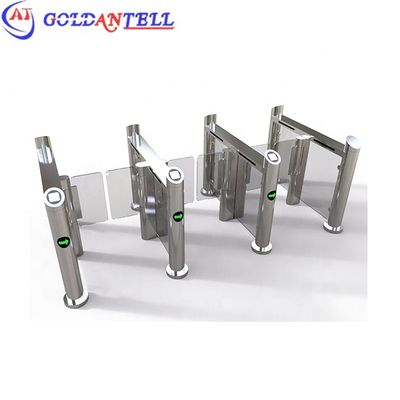

Vertical shape
Bridge shape: this model
Pillar shape (or tube type)
Single motor and Double motor: single motor (suitable for single passageway and multiple passageway); Double motors (suitable for multiple passageways).

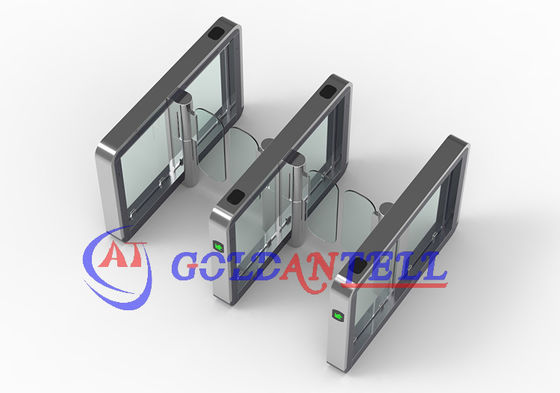

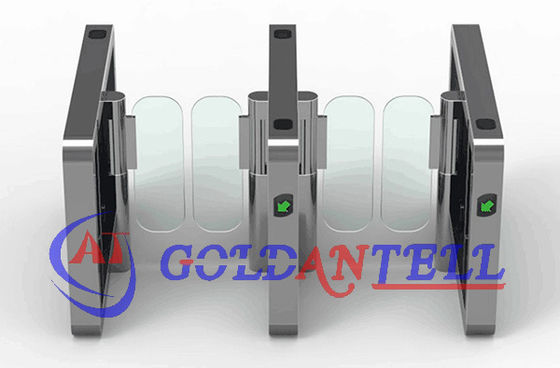

Product Display
Compact 304 Stainless Steel Swing Barrier Gate with 0.2s Open/Close Time and RS485 Communication 0
Compact 304 Stainless Steel Swing Barrier Gate with 0.2s Open/Close Time and RS485 Communication 0

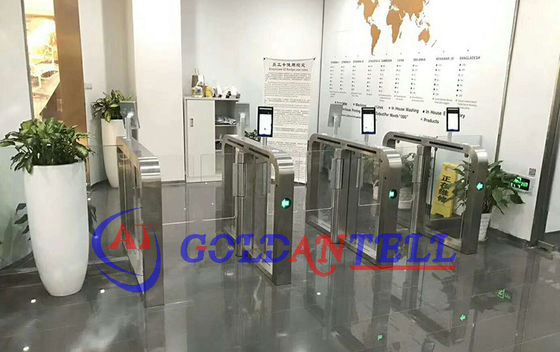

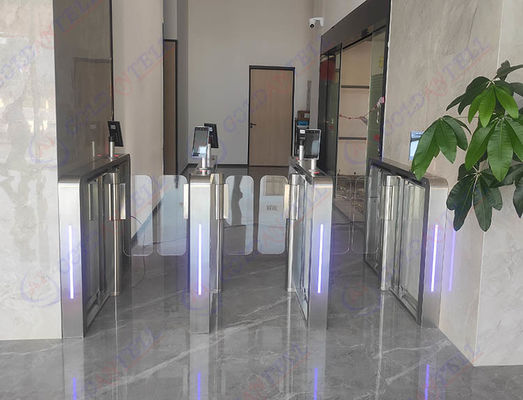

Project Sites
Bank, Fitness Gym, Factory, Hotel, Movie theaters, Office buildings
FAQ Of Barrier Gate
1. Can I have a system that only supports ESD test without software?
Vivian: sure, there are more options. Our catalog can provide to help you make a choice.
2. What is the language version available for the software system and displayed on the machine?
Vivian: English / Chinese.
3. Can I have a software manual or installation instructions?
Vivian: sure, no problem, manual in the English version is available as well.
4. Can I customize it?
Vivian: Yes, Welcome. We are the manufacturer, we have rich OEM/ODM experience for government, etc.
5. What are your terms of payment?
Vivian: 100% paid before shipment. We'll show you the photos or videos of the products and packages before you pay the balance.
6. What are your terms of delivery?
Vivian: EXW, FOB, CFR, CIF, DDU.
Packing Details Of Barrier Gate
1. Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap
2. Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging.
3. To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Information
Shenzhen Goldantell Technology Co.,Ltd is a leading exporter and supply chain service provider of intelligent turnstile, access control system and parking management products, starting from 2007.
We also provide the customized products and OEM service. Various new collections and design are coming out each year.
Compact 304 Stainless Steel Swing Barrier Gate with 0.2s Open/Close Time and RS485 Communication 2
Compact 304 Stainless Steel Swing Barrier Gate with 0.2s Open/Close Time and RS485 Communication 2
Compact 304 Stainless Steel Swing Barrier Gate with 0.2s Open/Close Time and RS485 Communication 4
Compact 304 Stainless Steel Swing Barrier Gate with 0.2s Open/Close Time and RS485 Communication 4
Our Services & Strength
1. We have professional designer, we can do OEM and ODM.
2. CE approved, very successful experiences with European government projects.
3. Responsible sales person, with more than 4 years experiences in the turnstile trade.
4. Competitive price with high standard quality and good after-sales service.
5. We can offer products according to custom requirement of clients and offer the access control system.
Why Choose Us
Compact 304 Stainless Steel Swing Barrier Gate with 0.2s Open/Close Time and RS485 Communication 6
Our Pre-sale & After-sale Service
1. Pre-sale service: good communication to better understanding of your demand, advance provide product full info.
2. On-purchase service: keep updating the production process to you, send clear photos and testing video before shipment.
3. After-sale service: offer you the instruction, manual or detailed video to guide you quickly install and use the product.
4. OEM/ODM service: More than 10 years powerful ODM/OEM ability, customize logo, product size, color, etc.
5. Professional service: 16 hours online or off-line prompt response to your inquiry.
Contact Details
Contact person: Vivian Zhou
WhatsApp: +86 13699796334
Wechat: junziyouxin | Skype: goldantell02
Compact 304 Stainless Steel Swing Barrier Gate with 0.2s Open/Close Time and RS485 Communication 7
Compact 304 Stainless Steel Swing Barrier Gate with 0.2s Open/Close Time and RS485 Communication 7
