Full Automatic Speed Gate Turnstile with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and IP54 Protection

  • Full Automatic Speed Gate Turnstile with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and IP54 Protection
  • Full Automatic Speed Gate Turnstile with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and IP54 Protection
  • Full Automatic Speed Gate Turnstile with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and IP54 Protection
  • Full Automatic Speed Gate Turnstile with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and IP54 Protection
  • Full Automatic Speed Gate Turnstile with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and IP54 Protection
  • Full Automatic Speed Gate Turnstile with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and IP54 Protection
Τόπος καταγωγής ΚΙΝΑ
Μάρκα GOLDANTELL
Αριθμό μοντέλου GAT-νέος
Ποσότητα παραγγελίας min 2
Τιμή $1,860

Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.

ΤιAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.

x
Λεπτομέρειες
Τροφοδοσία 110~240 Β (ΕΝΑΛΛΑΣΣΌΜΕΝΟ ΡΕΎΜΑ) Συχνότητα 50~60 Hz
Πλάτος διέλευσης 550mm600mm Ταχύτητα 30-40 άτομα/λεπτό
Μέγιστη κατανάλωση ενέργειας 60W Προστασία IP IP54
Θερμοκρασία εργασίας -15 ~ 75 ° C Διάσταση εξαιρουμένων των μπαρ 1200x310x1000 mm
Καθαρό βάρος 150 kg Θερμοκρασία λειτουργίας -15°C-75°C
Σχετική υγρασία ≤ 95%, χωρίς συμπύκνωση Μοτέρ 0.5NM/24V ((Πλήρως αυτόματο)
Σύνδεση εισαγωγής +12V επίπεδο σήματος ή πλάτος παλμού>100ms DC12V Σύνδεση επικοινωνίας Πρότυπο Επικοινωνίας RS485
Πάχος υλικού SUS304, όχι λιγότερο από 1,3 χιλιοστά
Επισημαίνω

550mm-600mm Passage Width Speed Gate Turnstile

,

30-40 Persons/Min Pass Speed Automatic Turnstile

,

IP54 Protection Access Control Turnstile
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων
RFID Interface Double Passage Bi-directional Waist Height Stainless Steel Full Automatic Turnstile Mechanism
This high-quality stainless steel turnstile features RFID interface, double passage, and bi-directional operation for efficient access control in various environments.
Specifications
Power AC 220±10%Volt, 50HZ
Operating Temperature -15°C-75°C
Relative Humidity ≤95%, No Condensation
Access Width ≤600mm
Passing Speed 30-40persons/min(IC Card)
Motor 0.5NM/24V(Fully Automatic)
Input Connection +12V Level Signal or Pulse Wide>100ms DC12V
Communication Connection RS485 Communication Module Standard
Material SUS304, thickness is no less than 1.3mm
Protection Grade IP54
Color SSB(US32D)- Stainless Steel Brushed / Powder Coating(Optional)
Operation Place Subway Station, Hoverport, Tourism Sports, Exhibition, Swimming Hall, Residence Area, Enterprise's Entrance and Exit Attendance, Gateway Guard, Charge Management, Special Access Control

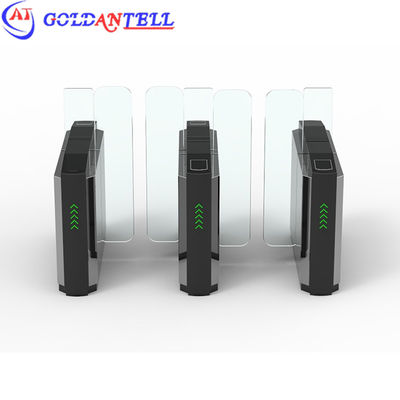

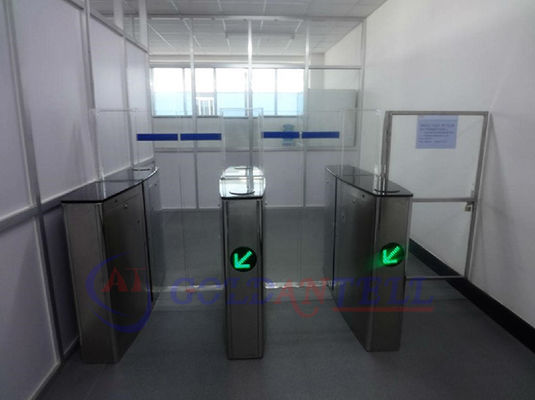

Product Images
Full Automatic Speed Gate Turnstile with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and IP54 Protection 0 Full Automatic Speed Gate Turnstile with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and IP54 Protection 1

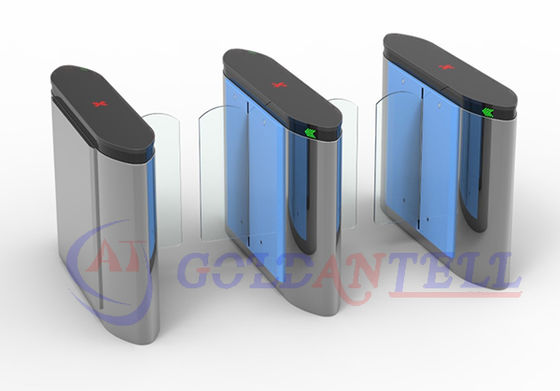

Related Products
Full Automatic Speed Gate Turnstile with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and IP54 Protection 2
Functions and Features
  • Can open the turnstile by two input signals (signals can be input by access controller, button or other equipments)
  • Direction guide function with LED indicators (yellow for ready, blue for access granted, red for unauthorized attempt)
  • Multi working modes: single direction or double direction optional
  • Fail-safe operation: railing falls when power is off
  • Counting function with configurable limit (N≤8 persons)
  • Optional voice prompt and display screen
  • Optional external counter for people counting
  • Optional RS485 communication for PC command through serial port
  • Optional self-alarm function for unauthorized access attempts

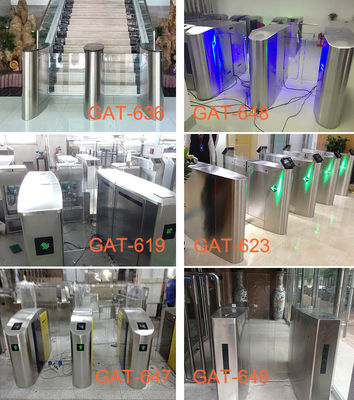

Project Example
Full Automatic Speed Gate Turnstile with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and IP54 Protection 3
About Shenzhen Goldantell Technologies Co., Ltd
We are a leading exporter and supply chain service provider of intelligent turnstile and parking management products with more than 8 years' experience. Our product range includes intelligent turnstiles, parking barriers, RFID cards, sentry boxes, wheel clamps, and other related security access control systems. We have exported to more than 50 countries and built long-term partnerships with clients worldwide.
Full Automatic Speed Gate Turnstile with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and IP54 Protection 4
Why Choose Us
Full Automatic Speed Gate Turnstile with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and IP54 Protection 5
Our Pre-sale & After-sale Service
  • Pre-sale service: Detailed product information and consultation
  • On-purchase service: Regular production updates with photos and testing videos
  • After-sale service: Comprehensive installation and usage guidance
  • OEM/ODM service: Customization of logo, size, color, etc.
  • Professional support: 16-hour response to inquiries
Contact Details
Contact person: Vivian Zhou
WhatsApp: +86 13699796334
Wechat: junziyouxin
Skype: goldantell02
Full Automatic Speed Gate Turnstile with 550mm-600mm Passage Width 30-40 Persons/Min Pass Speed and IP54 Protection 6
Global Reach
We have successfully delivered turnstiles to more than 50 countries including Brazil, Chile, Peru, Colombia, United States, Australia, Canada, New Zealand, the Netherlands, Switzerland, Sweden, Germany, Portugal, Philippines, Vietnam, Singapore, Malaysia, Saudi Arabia, Kenya, Nigeria, Zambia, Angola, Egypt, Ghana, Paraguay, Nepal and Myanmar.
Frequently Asked Questions
Can you install RFID card reader on the turnstile?
Yes, we can install RFID card reader systems as well as fingerprint reader systems, token systems, ESD systems, etc.
What is your warranty and after-sales service?
We offer 12-month quality guarantee with professional English-speaking sales and after-sales support.
What is your lead time?
For standard items:
10-50 sets: 5 working days
50-100 sets: 7-10 working days
200-500 sets: 10-15 working days
Custom items require 3-10 additional working days
What are your payment terms?
We accept TT, Western Union, L/C, and participate in Trade Assurance for order security.
How do you ship products?
Samples: By air or express (3-5 days)
Bulk orders: By sea (7-60 days depending on destination)
We offer various packaging options including carton, crate, and closed wooden packages.
Do you offer OEM services?
Yes, we provide comprehensive OEM services including:
1) Custom turnstile design based on your requirements
2) Logo printing on turnstiles
3) Custom retail box packaging
Trade Terms
  • Offer valid for 30 days
  • Delivery within 7 days after payment confirmation
  • Payment methods: T/T, LC, Western Union, Escrow, PayPal
  • Packaging: Carton box + wooden case/crate
Delivery Options
  • Sea freight: 15-60 days depending on destination
  • Express shipping (UPS/DHL/FEDEX/TNT): 3-5 days door-to-door
  • Air cargo: 2-7 days
Our Commitment
  • 24-hour response to all inquiries
  • Professional English-speaking support team
  • Comprehensive OEM services
  • Expert engineering support
Goldantell turnstiles - factory direct pricing, premium quality. Contact us today for your access control needs!
